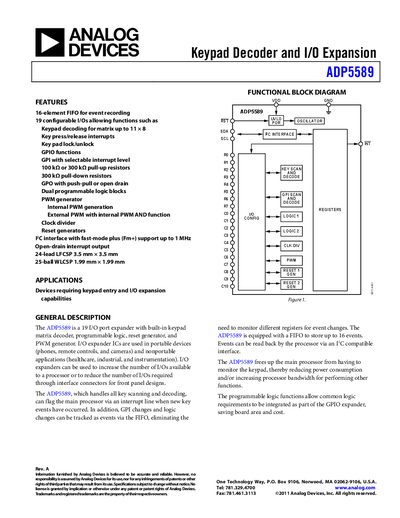

The ADP5589 is a keypad decoder and I/O expander from Analog Devices (ADI). It supports a 16-element FIFO for event recording and has 19 configurable I/Os that can be used for keypad decoding, key press/release interrupts, key pad lock/unlock, GPIO functions, etc.
The ADP5589 from Analog Devices provides 19 configurable I/O pins that can be used for keypad matrix decoding (up to an 11 × 8 matrix), general‑purpose I/O expansion, PWM generation, clock division and dual reset generators. It integrates a 16‑event FIFO and programmable logic blocks to reduce processor load and board area.
The device operates from a 1.65 V to 3.6 V supply, supports I²C‑compatible communication, and offers selectable pull‑up/pull‑down resistors, open‑drain and push‑pull outputs, as well as debounce filtering for reliable key scanning.
| Supply Voltage (VDD) Range | 1.65 V – 3.6 V |
|---|---|
| Undervoltage Lockout (UVLO) Threshold | 1.2 V – 1.3 V (active low) |
| Pull‑Up Resistor Options | 50 kΩ – 150 kΩ (Option 1) or 150 kΩ – 450 kΩ (Option 2) |
| Pull‑Down Resistor | 150 kΩ – 450 kΩ |
| Logic Low Input Voltage | 0.3 × VDD |
| Logic High Input Voltage | 0.7 × VDD |
| Maximum Keypad Matrix Size | 11 columns × 8 rows |
| Number of Configurable I/Os | 19 |
The device can decode a keypad matrix up to 11 columns by 8 rows.
The ADP5589 provides 19 configurable input/output pins.
It operates from 1.65 V to 3.6 V.
Yes, each I/O can be sampled directly or through a debounce filter.
