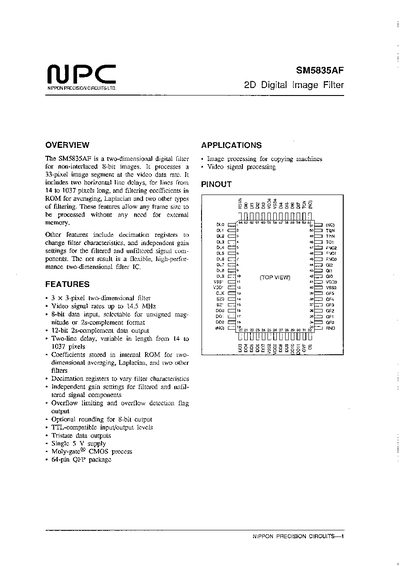

The SM5835AF is a two‑dimensional digital image filter IC designed for non‑interlaced 8‑bit video images. It processes a 33‑pixel segment at video data rates and includes internal ROM‑stored coefficients for averaging, Laplacian and other filter types, allowing any frame size without external memory.
Key features include a 3 × 3‑pixel filter, video signal rates up to 14.5 MHz, 8‑bit input, 12‑bit output, variable line‑delay length (14‑1037 pixels), independent gain settings, overflow detection, TTL‑compatible I/O, and a single 5 V supply in a 64‑pin QFP package.
| Video signal rate | up to 14.5 MHz |
|---|---|
| Data input width | 8‑bit |
| Data output width | 12‑bit 2s‑complement |
| Line‑delay length | variable 14 to 1037 pixels |
| Supply voltage range | 4.75 V to 5.25 V |
| Power dissipation | 400 mW |
| Current consumption (typical) | 60 – 80 mA |
| Package | 64‑pin QFP |
| I/O level compatibility | TTL‑compatible |
| Supply requirement | single 5 V supply |
It supports video signal rates up to 14.5 MHz.
The device operates with a supply voltage between 4.75 V and 5.25 V.
The line‑delay length is variable from 14 to 1037 pixels.
It is supplied in a 64‑pin QFP package.
