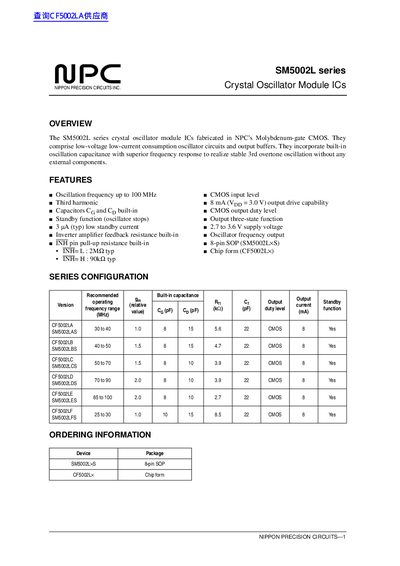

The SM5002L series is a crystal oscillator module IC manufactured by NIPPON PRECISION CIRCUITS INC. It features low-voltage and low-current consumption oscillator circuits and output buffers. It incorporates built-in oscillation capacitance with superior frequency response to achieve stable 3rd overtone oscillation without any external components.
The SM5002L series consists of low-voltage, low-current consumption oscillator circuits fabricated in Nippon Precision Circuits' Molybdenum-gate CMOS technology. These modules incorporate built-in oscillation capacitance to realize stable 3rd overtone oscillation without requiring external components.
| Oscillation frequency range | 25 to 100 MHz |
|---|---|
| Supply voltage | 2.7 to 3.6 V |
| Output drive capability | 8 mA (Vpp = 3.0 V) |
| Operating temperature range | -40 to 85 °C |
| Package type | 8-pin SOP or Chip form |
The oscillator stops when the INH pin goes LOW, and the output on Q goes high impedance.
No, the module incorporates built-in capacitance to realize stable 3rd overtone oscillation without any external components.
