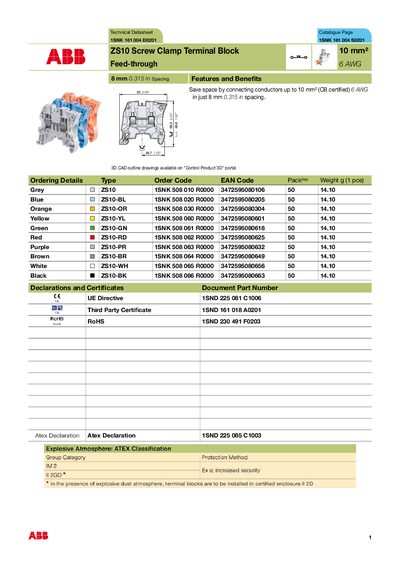

The ZS10 screw clamp terminal block can connect conductors up to 10 mm² (CB certified) 6 AWG in just 8 mm 0.315 in spacing.
The ZS10 screw clamp terminal block is a compact, feed‑through terminal with 8 mm (0.375 in) spacing, allowing conductors up to 10 mm² (6 AWG) to be connected. It features a screw clamp design, polyamide insulation, UL94‑VO flammability rating and IP20 protection, and complies with IEC 60947‑7‑1 standards.
The datasheet lists electrical ratings (57 A rated current, 1200 A short‑time withstand), temperature ranges (‑55 °C to +110 °C storage), and environmental test results (dry heat, damp heat, cold, corrosion). It also provides ordering codes, EAN numbers, and a full accessories catalogue such as end stops, jumper bars, and protective covers.
| Terminal spacing | 8 mm (0.375 in) |
|---|---|
| Rated current | 57 A |
| Short‑time withstand current (1 s) | 1200 A |
| IP protection rating | IP20 |
| Insulating material | Polyamide |
| Flammability rating | UL94 VO |
| Maximum voltage (UL) | 600 V |
| Maximum voltage (IEC) | 1000 V |
| Storage temperature range | -55 °C to +110 °C |
| Cross‑section rating | 10 mm² (6 AWG) |
The ZS10 terminal block is rated for 57 A according to IEC 60947‑7‑1.
It has an IP20 protection rating.
The block can be stored between –55 °C and +110 °C.
