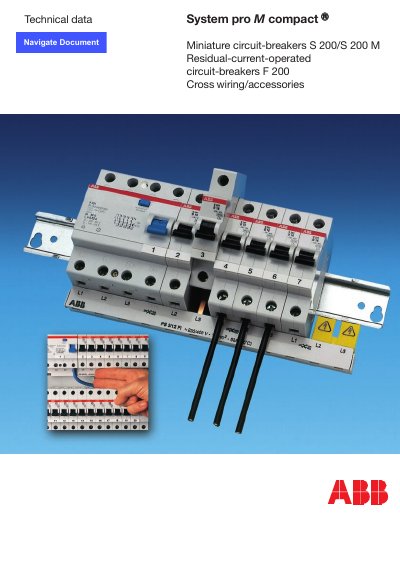

This document provides technical data and features of the System pro M compact® Miniature circuit-breakers S 200/S 200 M and Residual-current-operated circuit-breakers F 200.
The S 200 and S 200 M series are compact miniature circuit‑breakers designed for protection of circuits with high short‑circuit capacity and selectable tripping characteristics. The handbook describes their technology, safety features and the range of auxiliary devices.
It includes detailed technical data, internal resistance, fault‑loop impedance limits, tripping diagrams, dimensions, wiring instructions, and selection tables for accessories and busbars, helping users specify and install the devices correctly. This manual is written in Chinese.
| Number of poles | 1, 2, 3, 4, 1 + NA, 3 + NA |
|---|---|
| Rated current (In) | B 6 … 63 A, C/D/K/Z 0.5 … 63 A |
| Mechanical service life | 20,000 operations |
The series offers B, C, D, K and Z tripping characteristics.
The rated voltage for a 1‑pole device is 230 V.
Connections use a failsafe bi‑directional cylinder‑lift terminal at the top and bottom.
The mechanical service life is rated for 20,000 operations.
