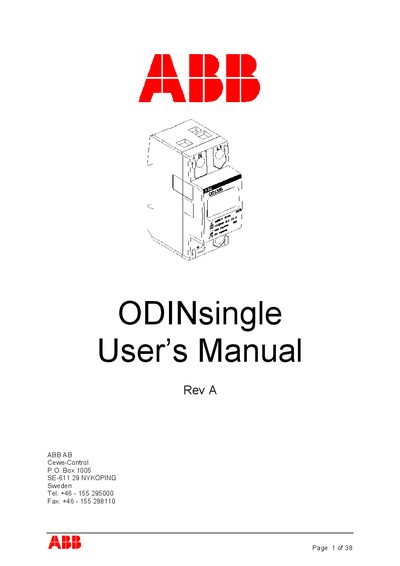

This manual describes the function and operation of the ODINsingle meter. ODINsingle meter is a high-quality meter from ABB, with various functions including power measurement, pulse output, communication, etc.
The ABB ODINsingle is a compact, DIN‑rail‑mounted single‑phase electricity meter designed for direct metering up to 65 A. This manual provides an overview of its hardware, software, and optional features such as pulse output and a red LED energy indicator.
It includes detailed instructions for safe installation, wiring, configuration of communication interfaces (M‑Bus, RS‑232, Ethernet, LON), and routine service tasks such as cleaning and recalibration. Safety warnings and handling procedures are highlighted to prevent hazardous exposure to live voltages.
| Maximum current rating | 65 A |
|---|---|
| Display type | 6‑digit LCD, 6 mm high |
| Operating temperature range | -25 °C to +55 °C (storage up to +70 °C) |
| Mounting method | DIN‑rail |
| Pulse output | Optional |
| Energy indicator | Red LED flashing proportionally to energy |
The meter is rated for direct metering up to 65 A.
It is designed to be mounted on a DIN rail.
Use a lightly moistened tissue with water‑based mild detergent and avoid any liquid entering the meter.
