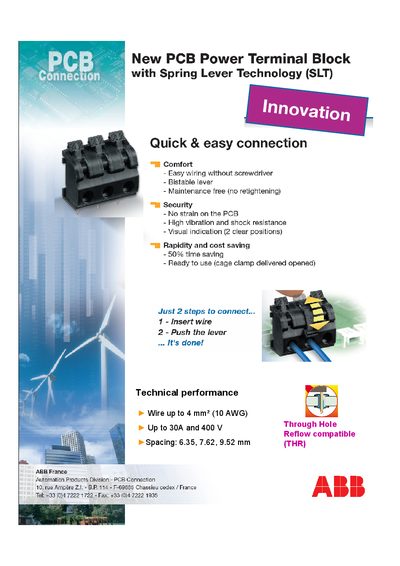

Product features: can carry 4mm² (10AWG) wire, 400V voltage resistance, spacing 6.35, 7.62, 9.52 mm.
The SLT PCB power terminal block provides a bistable lever for easy, screwdriver‑free wiring in just two steps: insert the wire and push the lever. Its design is maintenance‑free, offers visual indication of connection status, and reduces installation time by up to 50%.
Technical data includes up to 30 A current, 400 V rating, and compatibility with through‑hole and reflow processes. Available spacing options are 6.35 mm, 7.62 mm, and 9.52 mm, with IP20/NEMA 1 protection and suitability for PCB thicknesses under 2.4 mm.
| Rated voltage | 400 V |
|---|---|
| Rated current | 30 A |
| Maximum wire size | 4 mm (10 AWG) |
| Spacing options | 6.35 mm, 7.62 mm, 9.52 mm |
| Reflow compatible | Yes |
| Through‑hole | Yes |
| IP protection | IP20 / NEMA 1 |
| PCB thickness limit | < 2.4 mm |
Only two steps: insert the wire and push the lever.
The terminal block is rated for up to 30 A.
Yes, it is reflow compatible.
It accepts wire up to 4 mm (10 AWG).
