ABB 5STP 33L2800 Phase Control Thyristor is designed for traction, energy and industrial applications, features patented floating silicon technology, low on-state and switching losses, optimum power handling capability and interdigitated amplifying gate.

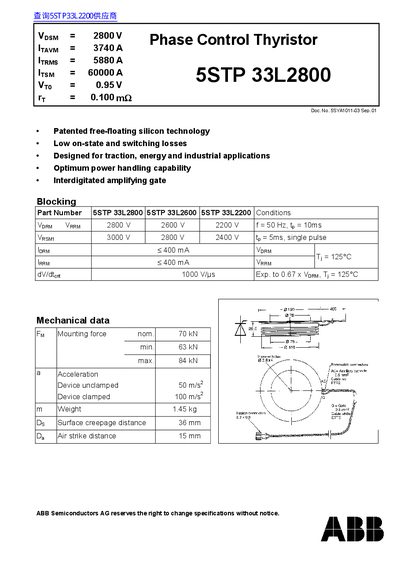

This document is a technical datasheet for the ABB 5STP 33L2800 Phase Control Thyristor. It provides comprehensive specifications including blocking voltages up to 2800V, RMS currents of 5880A, and peak surge capabilities.
| RMS on-state current (Itrms) | 5880 A |
|---|---|
| Maximum operating junction temperature | 125 °C |
| Gate trigger voltage (Ver) | 2.6V |
| Peak forward gate current (Irom) | 10A |
The maximum RMS on-state current is 5880 A.
A minimum mounting force of 63 kN is required.
The maximum operating junction temperature is 125 °C.
