ABB ACS55 single-phase drive is suitable for single-phase residential and commercial applications. It has a compact, slim design, multiple installation options, high switching frequency reduced motor noise, built-in 1st environment EMC filter, easy configuration using potentiometer and switches and fast programming of drives without the need for a power connection.
The ABB ACS55 series provides compact, single‑phase and three‑phase drives from 0.18 kW to 2.2 kW (0.25 hp to 3 hp). Designed for fans, pumps, conveyors and other material‑handling equipment, the drives feature high‑frequency switching, built‑in EMC filters and easy configuration via potentiometers or the optional DriveConfig PC tool.

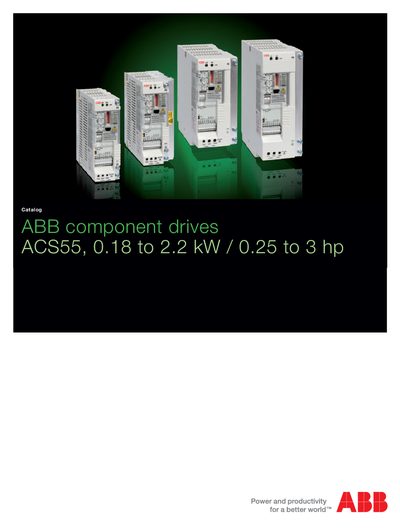

Technical data include a power range of 0.18‑2.2 kW, input voltages of 110‑120 V or 200‑240 V, standard switching frequency of 5 kHz (adjustable to 16 kHz), IP20 protection, and operation from –20 °C to 40 °C. The catalog also details optional accessories such as the DriveConfig kit and ACS50‑POT potentiometer.
| Power range | 0.18 to 2.2 kW |
|---|---|
| Input voltage | 110‑120 V and 200‑240 V |
| Frequency | 48 to 63 Hz |
| Standard switching frequency | 5 kHz (adjustable to 16 kHz) |
| Degree of protection | IP20 |
| Ambient temperature range | -20 °C to 40 °C |
| Nominal output current | 0 to 1000 mA |
The ACS55 drives cover a power range from 0.18 kW to 2.2 kW.
They accept single‑phase 110‑120 V or 200‑240 V input voltages.
The standard switching frequency is 5 kHz and can be adjusted up to 16 kHz.
The drive has an IP20 degree of protection.
