SNK series terminal blocks, available in various colors, can connect conductors up to 4mm² with screw clamp, CE, CB, RoHS certified

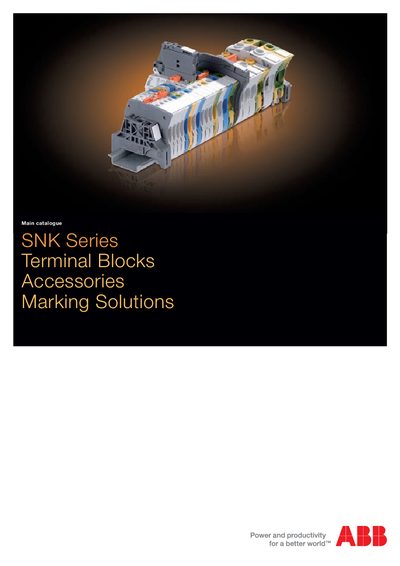

The catalogue presents the SNK Series screw‑clamp terminal blocks together with a full range of accessories such as end stops, jumper bars, shielding connectors, and circuit separators. It highlights design benefits like space‑saving, easy mounting, and clear marking areas visible from any direction.
Marking solutions include blank marker cards, self‑adhesive strips, universal marker holders, and ABB automatic printing systems (AMS 500 Plotter, HTP500 Thermal Transfer Printer). Technical specifications, certification details, and ordering codes are provided for each product variant.
| Rated current | 63 A |
|---|---|
| Rated voltage | 250 V |
| Impulse withstand voltage | 8000 V |
| Protection rating | IP20 |
| Rated cross section | 4 mm² (10 AWG) |
| Rated short‑time current | 480 A |
ABB provides blank marker cards, self‑adhesive strips, universal marker holders, and automatic printing solutions such as the AMS 500 Plotter and HTP500 Thermal Transfer Printer.
The design allows up to 20 % size reduction and uses a single identical end plate for most blocks, lowering the number of blocks and accessories needed.
They are CB certified and meet worldwide standards, including UL, CSA, ATEX, GOST and other regional certifications.
