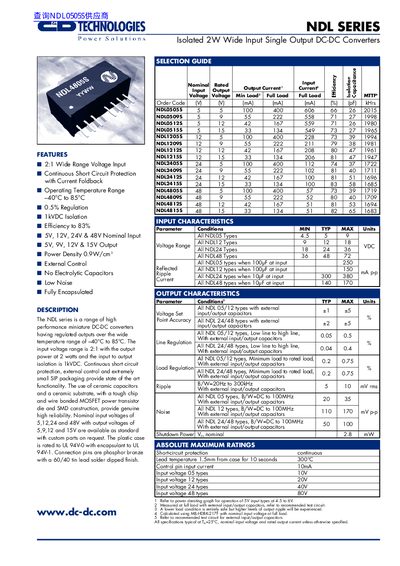

The NDL series is a range of high performance miniature DC-DC converters having regulated outputs over the wide temperature range of –40°C to 85°C. The input voltage range is 2:1 with the output power at 2 watts and the input to output isolation is 1kVDC. Continuous short circuit protection, external control and extremely small SIP packaging provide state of the art functionality. The use of ceramic capacitors and a ceramic substrate, with a tough chip and wire bonded MOSFET power transistor die and SMD construction, provide genuine high reliability. Nominal input voltages of 5,12,24 and 48V with output voltages of 5,9,12 and 15V are available as standard with custom parts on request. The plastic case is rated to UL 94V-0 with encapsulant to UL 94V-1. Connection pins are phosphor bronze with a 60/40 tin lead solder dipped finish.
The NDL series is a range of high‑performance miniature isolated DC‑DC converters offering regulated outputs over a wide temperature range of -40 °C to 85 °C. They provide a 2:1 wide input voltage range, continuous short‑circuit protection, external control, and a compact SIP package.
Key specifications include 1 kVDC isolation, up to 83 % efficiency, power density of 0.9 W/cm², and nominal input options of 5 V, 12 V, 24 V and 48 V with output voltages of 5 V, 9 V, 12 V and 15 V. Mechanical dimensions and weight are provided for each model, and recommended test circuits are listed for verification.
| Input voltage range | 2:1 wide |
|---|---|
| Operating temperature range | -40 °C to 85 °C |
| Regulation | 0.5 % |
| Isolation voltage | 1 kVDC |
| Efficiency | up to 83 % |
| Power density | 0.9 W/cm² |
| Output voltages | 5 V, 9 V, 12 V, 15 V |
| Weight (NDL4805S model) | 5.0 g |
The converters provide 1 kVDC isolation.
They operate from -40 °C up to 85 °C.
The converters can reach up to 83 % efficiency.
