The LME series of DC-DC converters are optimised for low-power operation. Due to the low quiescent current they are able to offer efficiencies up to 75%. The use of advanced magnetics ensures a minimal quiescent current of around 2.5mA which ensures that efficiency is maximised in low power applications. They are ideally suited to generating a negative supply where only a positive rail exists.

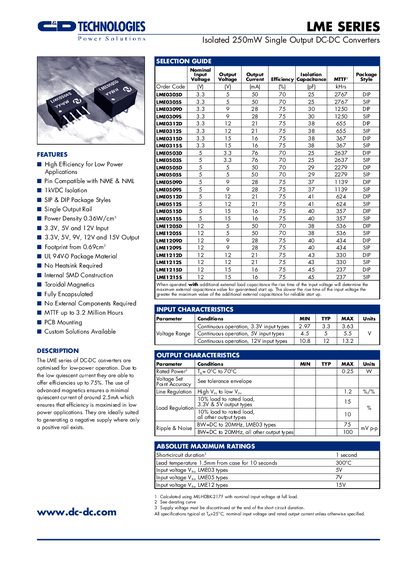

This document provides technical specifications for the C&D Technologies LME Series of isolated DC-DC converters. These devices are optimized for low-power applications with efficiencies up to 75% and minimal quiescent current around 2.5mA. They support input voltages of 3.3V, 5V, and 12V, with output options ranging from 3.3V to 15V.
| Rated Power | 0.25 W |
|---|---|
| Isolation Test Voltage | 1000 VDC |
| Switching Frequency | 100 kHz |
| Storage Temperature Range | -55 to 150 °C |
| Package Styles | SIP & DIP |
The converters offer efficiencies up to 75%.
No, no heatsink is required for operation.
