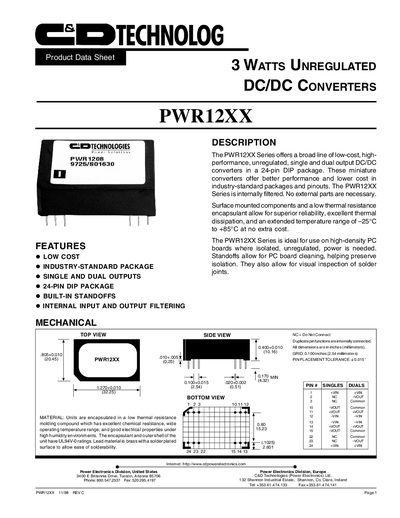

The PWR12XX Series is a broad line of low-cost, high-performance, unregulated, single and dual output DC/DC converters in a 24-pin DIP package.
The PWR12XX series provides compact, unregulated DC/DC conversion in a 24‑pin DIP package. Internal filtering and built‑in standoffs eliminate the need for external components, while the low‑thermal‑resistance encapsulant gives reliable operation from –25 °C to +85 °C.
Typical specifications include input voltages from 5 V to 24 V, output voltages from 5 V to 15 V, and efficiencies around 75 %. Ordering information, performance curves, and application notes are included to aid design and integration.
| Rated Power | 3 W |
|---|---|
| Switching Frequency | 150 kHz |
| Package Weight | 12 g |
| Efficiency | 75 % |
| Operating Temperature Range | -25 °C to +85 °C |
Each converter is rated for a maximum output power of 3 W.
The converters operate at a switching frequency of 150 kHz.
They are specified for operation from –25 °C up to +85 °C.
