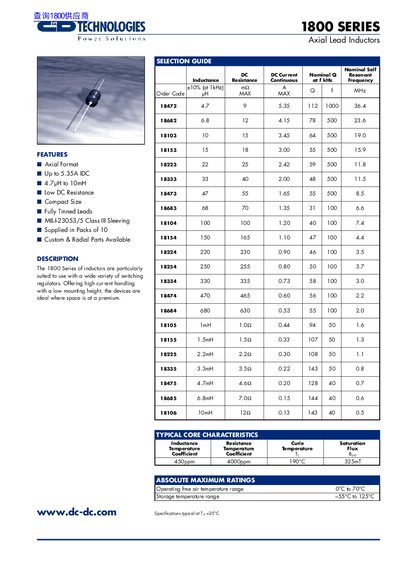

This datasheet provides information on the 1800 series inductors, including specifications, features, and parameters.
The 1800 Series axial lead inductors from C&D Technologies are designed for switching regulator applications where high current handling and low profile are required. They feature an axial format, compact size, fully tinned leads, and MIL‑S‑23053/5 Class III sleeving.
The datasheet lists inductance values from 0.47 µH up to 10 mH, DC resistance, current ratings, and absolute maximum ratings such as an operating temperature range of 0 °C to 70 °C and storage range of –55 °C to 125 °C. Mechanical dimensions are provided, with a maximum height of 13.70 mm, width of 18.25 mm, and length of 78.25 mm.
| Inductance range | 0.47 µH – 10 mH |
|---|---|
| Operating temperature range | 0 °C to 70 °C |
| Storage temperature range | -55 °C to 125 °C |
| Maximum height (mechanical) | 13.70 mm |
The inductors operate from 0 °C up to 70 °C in free air.
Maximum height is 13.70 mm, width 18.25 mm, and length 78.25 mm.
Inductance values range from 0.47 µH up to 10 mH.
Yes, the inductors have fully tinned leads.
