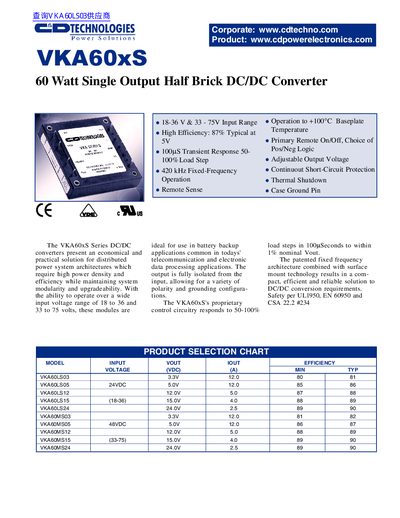

The VKA60xS Series DC/DC converters present an economical and practical solution for distributed power system architectures which require high power density and efficiency while maintaining system modularity and upgradeability. With the ability to operate over a wide input voltage range of 18 to 36 and 33 to 75 volts, these modules are ideal for use in battery backup applications common in today's telecommunication and electronic data processing applications. The output is fully isolated from the input, allowing for a variety of polarity and grounding configurations. The VKA60xS's proprietary control circuitry responds to 50-100% load steps in 100µSeconds to within 1% nominal Vout. The patented fixed frequency architecture combined with surface mount technology results in a compact, efficient and reliable solution to DC/DC conversion requirements. Safety per UL1950, EN 60950 and CSA 22.2 #234.
The VKA60xS Series DC/DC converters are designed for distributed power system architectures requiring high power density and efficiency. They operate over wide input voltage ranges (18-36V or 33-75V) and feature a fixed-frequency operation at 420 kHz with remote sense capability.
| Rated Power | 60 W |
|---|---|
| Switching Frequency | 420 kHz |
| Input Voltage Range (LS) | 18 to 36 VDC |
| Input Voltage Range (MS) | 33 to 75 VDC |
| Set point Accuracy | 1 % |
| Operating Temperature | -40 to +100 °C |
| Weight | 85 g |
The typical efficiency is 87% at 5V output.
The converter responds to 50-100% load steps in 100 microseconds.
The maximum input current for the VKA60LS model is 4.4 A.
