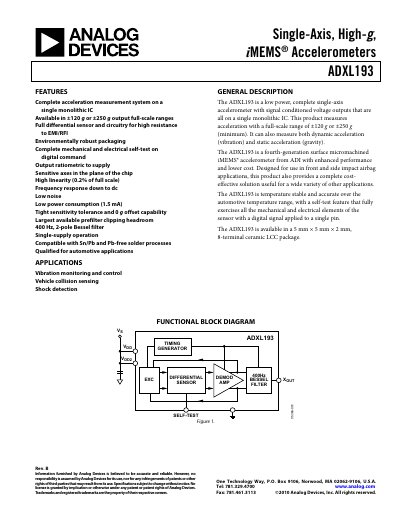

The ADXL193 is a single-axis high-g accelerometer that features a single monolithic IC for ±120g or ±250g output full-scale ranges.
The ADXL193 is a low‑power, single‑axis accelerometer that provides a fully differential sensor structure and signal‑conditioned voltage outputs on a single monolithic IC. It offers selectable full‑scale ranges of ±120 g or ±250 g and is qualified for automotive applications.
The device operates from a 3.5 V to 6 V supply, consumes about 1.5 mA, and includes a self‑test function, a 2‑pole Bessel filter with 400 Hz cutoff, and a high resonant frequency of 24 kHz. Detailed pin descriptions, recommended soldering profiles, and ordering information are provided.
| Full‑scale range | ±120 g or ±250 g |
|---|
The ADXL193 can be ordered with a full‑scale range of either ±120 g or ±250 g.
