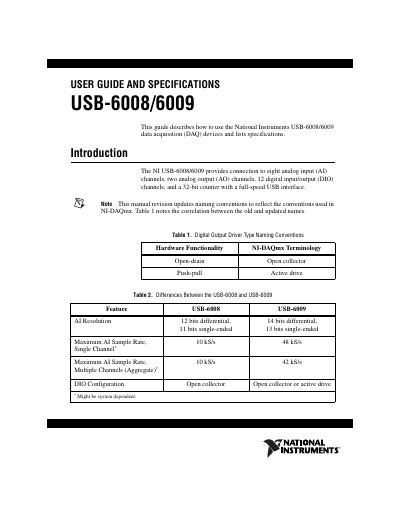

National Instruments USB-6008/6009 User Guide and Specifications

This guide describes how to use the National Instruments USB-6008/6009 data acquisition (DAQ) devices and lists specifications.

Brand: National Semiconductor
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 25
File format: PDF
File size: 401 KB
Published: 05 May, 2012
Updated: 30 September, 2023
MD5 checksum: 43DB4B94EAB7524061652D9D45104380
PDF: National Instruments USB-6008/6009 User Guide and Specifications PDF

About this manual

This guide describes how to use the National Instruments USB-6008/6009 data acquisition devices, covering safety guidelines, hardware functionality, and the differences between the two models. It includes hardware block diagrams, terminal assignments, and wiring instructions for proper installation.

The manual also details software support through NI‑DAQmx for Windows, includes the VI Logger Lite tool for data logging, and provides EMC compliance information and support contact details.

What's inside

Introduction
Safety Guidelines
Hardware Functionality
Differences Between USB-6008 and USB-6009
Digital I/O Configuration
Software Support
VI Logger
Hardware Setup
Analog and Digital Terminal Assignments
Electromagnetic Compatibility

Specifications

Analog Input Channels	8
Digital I/O Channels	12
AI Resolution (USB‑6008)	12 bits differential
Maximum AI Sample Rate (USB‑6008)	10 kS/s
USB Interface	Full‑Speed

Frequently asked questions

What safety precautions are required for the USB‑6008/6009?

Do not operate the device in an explosive atmosphere and follow all safety guidelines in the manual.

Which software supports the USB‑6008/6009 on Windows?

NI‑DAQmx provides software support for Windows 2000/XP.

How many analog input channels does the USB‑6008/6009 have?

The device provides eight analog input (AI) channels.
