The DS90LV031A 3V LVDS Quad CMOS Differential Line Driver is a low power and high data rate quad LVDS differential line driver.
The DS90LV031A is a quad CMOS differential line driver designed for ultra‑low power dissipation and high data‑rate LVDS applications. It accepts TTL/CMOS inputs and outputs low‑voltage (350 mV) differential signals, with a TRI‑STATE function for ultra‑low idle power.

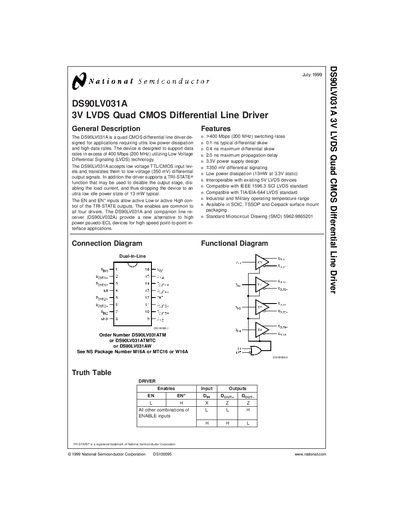

The document lists detailed electrical and switching characteristics, absolute maximum ratings, recommended PCB layout, termination practices, and packaging options (SOIC, TSSOP, Cerpack). Ordering information, pin descriptions, and physical dimensions are also included to aid designers in integrating the device into point‑to‑point LVDS systems.
| Typical power dissipation | 13 mW at 3.3 V static |
|---|---|
| Supply voltage range | -0.3 V to +4 V |
| Operating temperature range (industrial) | -40 °C to +85 °C |
| Output current (typical) | 3.5 mA (2.5 mA – 4.5 mA range) |
| Package options | SOIC, TSSOP, Cerpack |
The device dissipates about 13 mW typical when powered at 3.3 V.
