The CLC021 is a high-integration, high-performance SMPTE 259M digital video serializer that can convert video signals to serial data formats and transmit them through serial data interfaces. The product is mainly used in high-definition video monitoring, video conferencing, and high-definition video broadcasting.

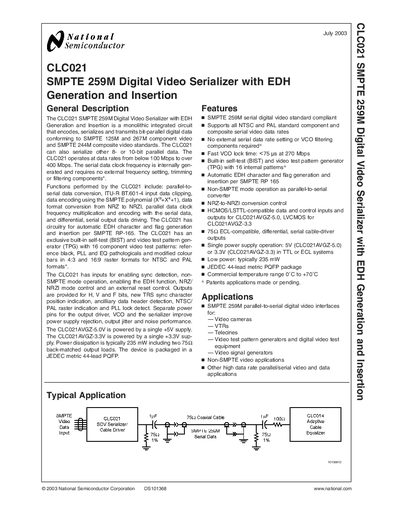

The CLC021 is a SMPTE 259M digital video serializer with built‑in EDH generation and insertion. It converts parallel component or composite video data to a serial format, supporting data rates from 100 Mbps to over 400 Mbps and operating from a single 5 V or 3.3 V supply.
The document includes functional descriptions, electrical characteristics, pin‑out information, layout recommendations, and application notes for use in video cameras, VTRs, telecines, and test equipment. It also contains safety and life‑support policy notices.
| Power Dissipation | Typical 235 mW |
|---|---|
| Package | 44‑lead metric PQFP |
| Operating Temperature (commercial) | 0 °C to +70 °C |
| Input Voltage High Level | 2.0 V |
| Output Driver Current | ±16 mA |
| Lock Time | < 75 ps at 270 Mbps |
The CLC021 is supplied in a JEDEC 44‑lead metric PQFP package.
The VCO lock time is less than 75 ps at a data rate of 270 Mbps.
