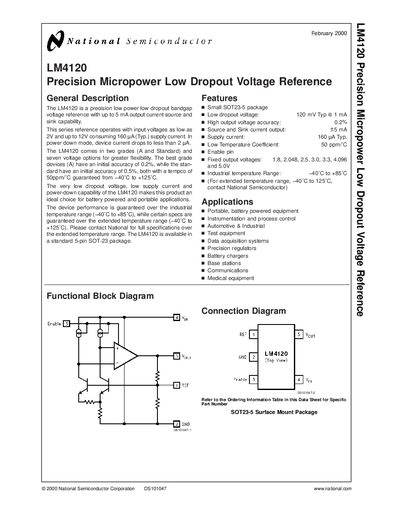

The LM4120 is a precision low power low dropout bandgap voltage reference with up to 5 mA output current source and sink capability. This series reference operates with input voltages as low as 2V and up to 12V consuming 160 µA (Typ.) supply current. In power down mode, device current drops to less than 2 µA. The LM4120 comes in two grades (A and Standard) and seven voltage options for greater flexibility. The best grade devices (A) have an initial accuracy of 0.2%, while the standard have an initial accuracy of 0.5%, both with a tempco of 50ppm/˚C guaranteed from −40˚C to +125˚C. The very low dropout voltage, low supply current and power-down capability of the LM4120 makes this product an ideal choice for battery powered and portable applications. The device performance is guaranteed over the industrial temperature range (−40˚C to +85˚C), while certain specs are guaranteed over the extended temperature range (−40˚C to +125˚C). Please contact National for full specifications over the extended temperature range. The LM4120 is available in a standard 5-pin SOT-23 package.
The LM4120 is a precision micropower low‑dropout voltage reference designed for battery‑powered and portable applications. It operates from 2 V to 12 V, provides up to 5 mA source or sink current, and is available in a 5‑pin SOT‑23 package.
Key features include a typical dropout voltage of 120 mV at 1 mA, supply current of 160 µA, high output voltage accuracy of 0.2 % (A‑grade) or 0.5 % (standard), and a temperature coefficient of 50 ppm/°C over the –40 °C to +85 °C industrial range.
| Dropout Voltage (typical) | 120 mV @ 1 mA |
|---|---|
| Supply Current (typical) | 160 µA |
| Output Voltage Accuracy | 0.2 % (A‑grade) / 0.5 % (standard) |
| Source / Sink Current | ±5 mA |
| Package | 5‑pin SOT‑23 |
The typical supply current is 160 µA.
It can source or sink up to ±5 mA.
The device operates over an industrial range of –40 °C to +85 °C (extended to –40 °C to +125 °C for some grades).
It is supplied in a standard 5‑pin SOT‑23 surface‑mount package.
