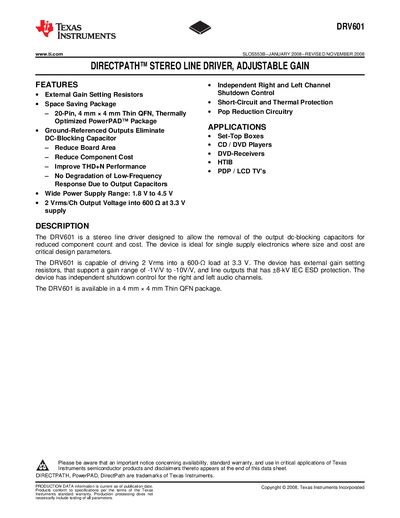

DRV601 is a stereo line driver produced by TI. Its feature is that the gain can be set by external resistors and supports a gain range of -1V/V to -10V/V.
The DRV601 stereo line driver eliminates the need for output dc‑blocking capacitors, reducing component count and board area. It operates from a single supply (1.8 V‑4.5 V) and delivers up to 2 Vrms into a 600 Ω load.
Key features include independent right and left channel control, external gain‑setting resistors (‑1 V/V to ‑10 V/V), +8 kV IEC ESD protection, and shutdown control for each channel. The device is offered in a 20‑pin 4 mm × 4 mm Thin QFN package with a thermally‑enhanced PowerPAD™ design.
| Supply voltage range | 1.8 V to 4.5 V |
|---|---|
| Output voltage capability | 2 Vrms into 600 Ω load at 3.3 V |
| Gain range (external resistors) | -1 V/V to -10 V/V |
| ESD protection | +8 kV IEC |
| Package type | 20‑pin 4 mm × 4 mm Thin QFN |
| Shutdown control | Independent active‑low shutdown for each channel |
The DRV601 operates from 1.8 V to 4.5 V supply voltage.
It can deliver 2 Vrms into a 600 Ω load when powered at 3.3 V.
Gain is set with external resistors, providing a range from –1 V/V to –10 V/V.
The device is offered in a 20‑pin 4 mm × 4 mm Thin QFN package.
