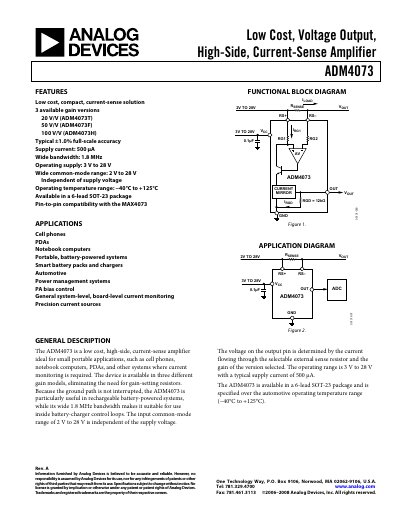

ADM4073 is a low-cost, voltage output, high-side current sense amplifier. Its features include selectable gain versions, ±1.0% full-scale accuracy, 500µA supply current, etc.
The ADM4073 is a high‑side current‑sense amplifier designed for portable applications such as cell phones, notebooks, and battery‑powered systems. It operates from 3 V to 28 V, draws a typical supply current of 500 µA, and offers a wide common‑mode range of 2 V to 28 V.
Three gain options (20 V/V, 50 V/V, 100 V/V) eliminate the need for external gain‑setting resistors. The device is supplied in a 6‑lead SOT‑23 package and is qualified for automotive temperature ranges (‑40 °C to +125 °C).
| Operating Voltage Range (VCC) | 3 V to 28 V |
|---|---|
| Supply Current (typical) | 0.5 mA |
| Bandwidth | 1.8 MHz |
| Gain Options | 20 V/V (ADM4073T), 50 V/V (ADM4073F), 100 V/V (ADM4073H) |
| Output High Voltage (VCC‑VOH) | 0.8 V to 1.2 V |
| Package | 6‑lead SOT‑23 (RJ‑6) |
| Operating Temperature Range | ‑40 °C to +125 °C |
The typical supply current is 500 µA.
Three gain versions are offered: 20 V/V (ADM4073T), 50 V/V (ADM4073F), and 100 V/V (ADM4073H).
It operates from –40 °C to +125 °C.
The device is supplied in a 6‑lead SOT‑23 (RJ‑6) package.
