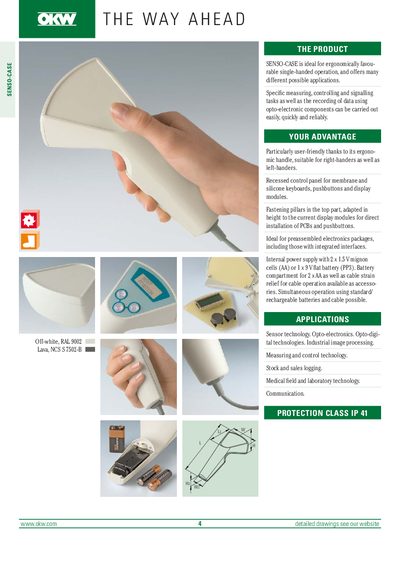

SENSO-CASE is the ideal housing for ergonomic single-handed operation and offers a wide variety of applications. Specific measurement, control and signalling tasks as well as data recording using opto-electronic components can be carried out easily, quickly and reliably.
The SENSO-CASE is designed for single‑handed operation with an ergonomic handle suitable for both right‑ and left‑handed users. It features a recessed control panel for membrane and silicone keyboards, pushbuttons and display modules, and can accommodate pre‑assembled electronics packages with integrated interfaces.
The enclosure offers internal power supply options (2 × AA cells or 1 × 9 V flat battery), a battery compartment, and optional cable strain‑relief accessories. It is made of ABS (UL 94 HB) material, comes in an off‑white RAL 9002 finish, and has a protection class of IP41.
| Protection Class | IP41 |
|---|---|
| Power Supply Options | 2 × AA (1.5 V) or 1 × 9 V flat battery |
| Material | ABS (UL 94 HB) |
It can be powered by either two AA (1.5 V) cells or a single 9 V flat battery.
The enclosure has a protection class of IP41.
The case is constructed from ABS plastic that meets UL 94 HB flame‑retardant standards.
