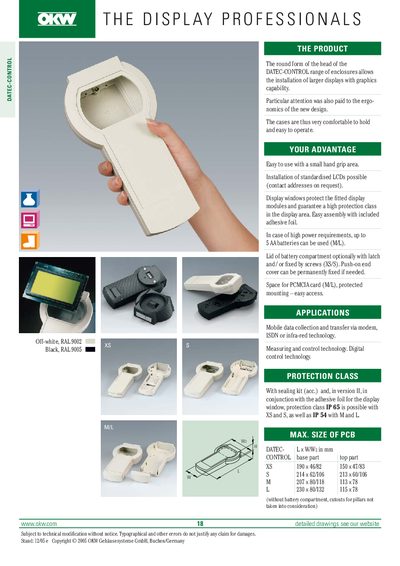

DATEC-CONTROL is a round control box that can be installed with large displays with graphics capability. The new design also pays particular attention to ergonomics, making the cases very comfortable to hold and easy to operate.
The DATEC-CONTROL series offers ergonomic, round‑head enclosures designed for larger LCD displays with graphics capability. The cases are comfortable to hold, feature a small hand‑grip area, and provide easy assembly with adhesive foil.
Enclosures are available in XS, M and L sizes with optional battery compartments, PCMCIA slots, and sealing kits that enable IP54 or IP65 protection. Various accessories such as display windows, battery clips, and mounting plates are listed with part numbers.
| Protection class (XS, S) | IP 65 |
|---|---|
| Protection class (M, L) | IP 54 |
| Maximum PCB size (XS) | 190 mm × 46/82 mm (base) / 150 mm × 47/83 mm (top) |
| Battery capacity (M/L) | up to 5 AA batteries |
The DATEC-CONTROL XS enclosure can reach protection class IP 65 when equipped with the sealing kit and adhesive foil.
The DATEC-CONTROL M enclosure measures 243 mm in length, 90/130 mm in width, and 60 mm in height.
The DATEC-CONTROL L model can be powered by up to five AA batteries.
