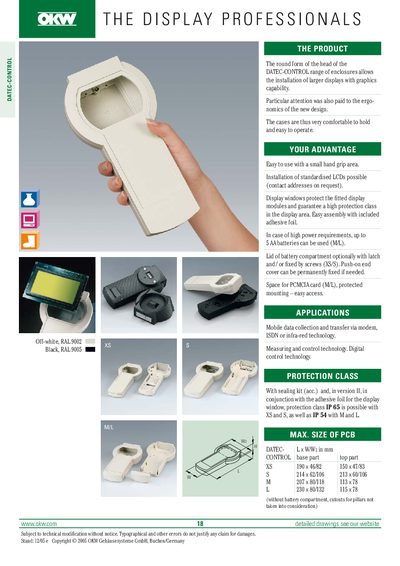

DATEC-CONTROL is a round computer control box produced by the German OKW company. This control box adopts a round design, can install a larger display screen, and is equipped with a protective window to protect the screen. It can also be equipped with batteries according to needs, which is convenient for mobile use.
The DATEC-CONTROL range of enclosures is designed for larger displays with graphics capability, offering ergonomic handling and easy operation. The round head design provides a comfortable hand grip and allows installation of standardised LCDs with optional adhesive foil for high protection.
Three size variants (XS, M, L) are available with different dimensions, battery compartments, and protection classes (IP65 for XS/S, IP54 for M/L). Materials are ABS (UL 94 HB) and a variety of accessories such as contacts, sealing kits and display windows are offered.
| XS dimensions (L×W×H mm) | 190 × 46/82 × 150 × 47/83 |
|---|---|
| M dimensions (L×W×H mm) | 243 × 90/130 × 60 |
| L dimensions (L×W×H mm) | 266 × 90/144 × 60 |
| Battery options | Up to 5 AA cells (M/L) or 1×9V PP3 |
| Protection class | IP65 (XS/S) with sealing kit, IP54 (M/L) |
| Material | ABS (UL 94 HB) |
The enclosures can be powered by up to five AA batteries for the M and L versions, or by a single 9 V flat battery (PP3).
With the sealing kit and adhesive foil, the XS and S versions can reach IP65, while the M and L versions achieve IP54.
