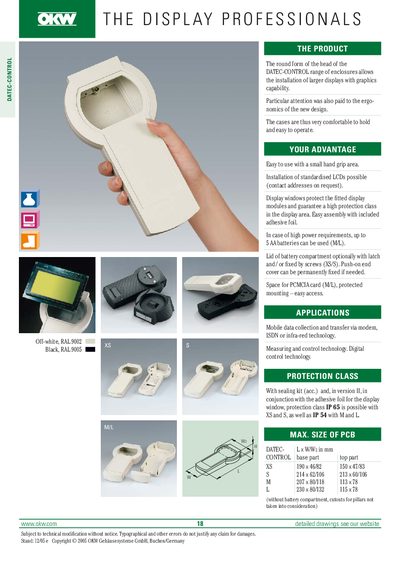

The round form of the head of the DATEC-CONTROL range of enclosures allows the installation of larger displays with graphics capability. Particular attention was also paid to the ergonomics of the new design. The cases are thus very comfortable to hold and easy to operate.
The DATEC-CONTROL range provides round‑head enclosures designed for larger LCD displays with graphics capability. The cases feature ergonomic hand‑grip areas, easy assembly with adhesive foil, and optional battery compartments that can hold up to five AA cells or a 9 V flat battery.
Four size variants (XS, M, L) are available with different dimensions, optional PCMCIA card spaces, and sealing kits that enable protection classes from IP54 up to IP65. A wide selection of accessories such as battery clips, contact pins, sealing kits, and display windows are listed with part numbers for easy ordering.
| Protection Class (XS, S) | IP65 |
|---|---|
| Protection Class (M, L) | IP54 |
| Maximum PCB size (XS) | 190 mm × 46 mm / 82 mm |
| Maximum PCB size (M) | 207 mm × 80 mm / 118 mm |
| Maximum PCB size (L) | 230 mm × 80 mm / 132 mm |
| Battery capacity (XS) | up to 5 AA cells |
| Dimensions (XS) | 200 mm × 58 mm / 94 mm × 39.5 mm |
| Dimensions (M) | 243 mm × 90 mm / 130 mm × 60 mm |
| Dimensions (L) | 266 mm × 90 mm / 144 mm × 60 mm |
With the sealing kit and adhesive foil, the XS and S versions can reach IP65, while the M and L versions can reach IP54.
The enclosure can accommodate up to five AA batteries for high‑power requirements.
The XS version measures 200 mm length, 58 mm/94 mm width, and 39.5 mm height.
Yes, the enclosures provide space for a PCMCIA card in the M and L sizes.
