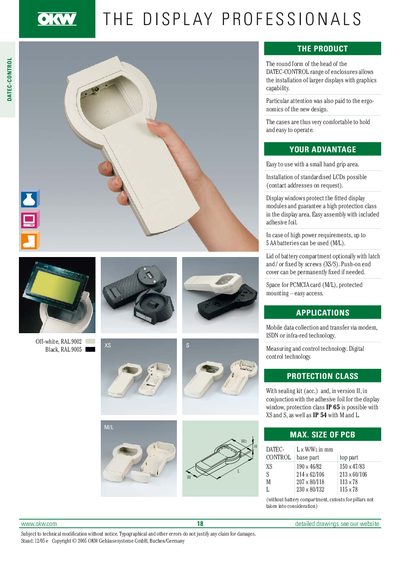

The document introduces the round form of the DATEC-CONTROL range of enclosures, which allows the installation of larger displays with graphics capability. The design focuses on ergonomics, making the cases comfortable to hold and easy to operate. They are easy to use with a small hand grip area. Standardized LCDs can be installed. Display windows protect the fitted display modules and provide a high protection class in the display area. They are easy to assemble with included adhesive foil. Suitable for mobile data collection and transfer, measuring and control technology, and digital control technology. They have a protection class of IP 65 or IP 54.
The DATEC‑CONTROL series from OKW provides round‑head enclosures designed for larger LCD displays with graphics capability. The cases are ergonomically shaped for easy handling and feature a small hand‑grip area, optional battery compartments and space for a PCMCIA card.
The enclosures are available in XS, M and L sizes, support various battery configurations, and can achieve IP54 or IP65 protection classes when equipped with the sealing kit and adhesive display window foil.
| Outside dimensions (XS) | 200 mm × 58 mm × 94 mm |
|---|---|
| Outside dimensions (M) | 243 mm × 90 mm × 130 mm |
| Maximum PCB size (XS) | 190 mm × 46 mm (top) / 150 mm × 47 mm (base) |
| Battery capacity (M/L) | Up to 5 AA cells |
| Protection class (XS, S) | IP65 with sealing kit and adhesive foil |
With the sealing kit and adhesive display window foil the XS and S versions reach IP65, while the M and L versions reach IP54.
The XS enclosure accepts a PCB up to 190 mm × 46 mm on the top part and 150 mm × 47 mm on the base part.
