SLVS038G is a control integrated circuit optimized for off-line and dc-to-dc converters, featuring low start-up current, automatic feed-forward compensation, pulse-by-pulse current limiting, etc.

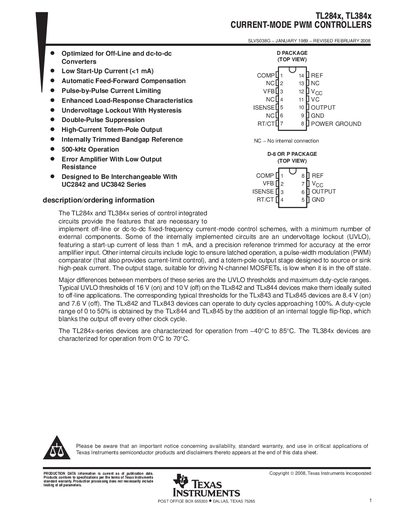

The TL284x and TL384x series are current‑mode PWM controller integrated circuits designed for off‑line and DC‑to‑DC converter applications. They integrate features such as low start‑up current, undervoltage lockout, pulse‑by‑pulse current limiting, and a high‑current totem‑pole output suitable for driving N‑channel MOSFETs.
The document provides ordering information, absolute maximum ratings, recommended operating conditions, electrical characteristics, and mechanical package data, along with an important notice covering warranty and usage restrictions.
| Supply voltage (recommended) | 30 V |
|---|---|
| Oscillator frequency range | 100 – 500 kHz |
| Maximum duty cycle (TLx842, TLx843) | 95 – 100 % |
| Operating supply current | 25 mA |
The devices have a low start‑up current of less than 1 mA.
Typical UVLO thresholds are 16 V (on) and 10 V (off) for TLx842.
The oscillator can be set between 100 kHz and 500 kHz.
