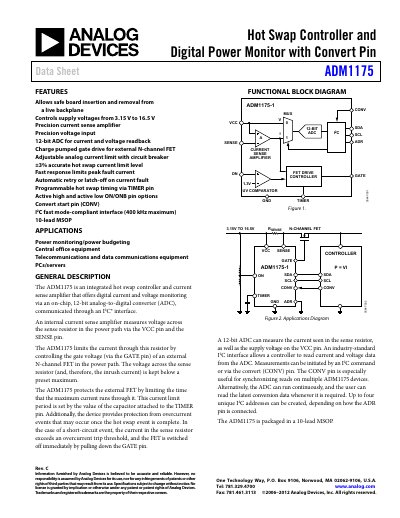

This data sheet introduces the features and characteristics of the ADM1175 hot swap controller and digital power monitor. It allows board insertion and removal from a live backplane, and controls supply voltages from 3.15V to 16.5V.
The ADM1175 combines a hot‑swap controller, precision current‑sense amplifier and a 12‑bit analog‑to‑digital converter. It monitors voltage and current on a live backplane and communicates the data over an I²C bus, allowing safe insertion and removal of boards.
Key features include adjustable analog current limit, fast over‑current response, programmable timing via the TIMER pin, and support for up to four I²C addresses. The device is supplied in a 10‑lead MSOP package and is intended for power‑monitoring applications such as telecom equipment, PCs/servers and other data‑communication hardware.
| Supply Voltage Range (VCC) | 3.15 V to 16.5 V |
|---|---|
| Supply Current (ICC) | 1.7 mA to 2.5 mA |
| Undervoltage Lockout (UVLO) | 2.8 V |
| I²C Fast‑Mode Maximum Frequency | 400 kHz |
| Package Type | 10‑lead MSOP |
| Operating Temperature Range | -40 °C to +85 °C |
| Absolute Maximum VCC Rating | 20 V |
| Maximum I²C Addresses | 4 |
It operates from 3.15 V up to 16.5 V on the VCC pin.
The device uses an I²C interface that complies with fast‑mode up to 400 kHz.
Four unique I²C addresses can be set using the ADR pin.
It is offered in a 10‑lead MSOP (Mini‑Small Outline Package).
