MP7533 is a 10-bit multiplying digital-to-analog converter with 10-bit accuracy, low power consumption, and can be used in digital-to-analog multiplication, CRT character generation, programmable power supplies, digitally controlled gain circuits, etc.

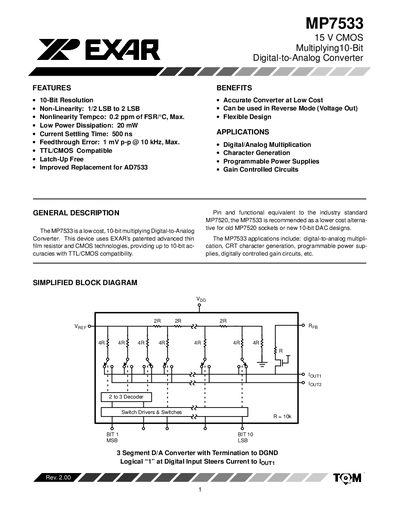

The MP7533 is a 15 V CMOS multiplying 10‑bit digital‑to‑analog converter designed for applications such as digital‑to‑analog multiplication, character generation, programmable power supplies, and gain‑controlled circuits. It offers TTL/CMOS compatibility, low power dissipation (20 mW), and a fast 500 ns current settling time.
Key features include 10‑bit resolution, non‑linearity of ½ LSB to 2 LSB, feedthrough error of 1 mV p‑p at 10 kHz, and a functional supply voltage range of 4.5 V to 15 V. The device is available in multiple package types (plastic/ceramic DIP, SOIC) with detailed pin configurations and absolute maximum ratings provided.
| Resolution | 10‑Bit |
|---|---|
| Power Dissipation | 20 mW |
| Current Settling Time | 500 ns |
| Feedthrough Error | 1 mV p‑p @ 10 kHz |
| Non‑Linearity | ½ LSB to 2 LSB |
| Supply Current | 2 mA |
| Total Dissipation | 20 mW |
The MP7533 provides a 10‑bit resolution.
The device dissipates 20 mW of power.
