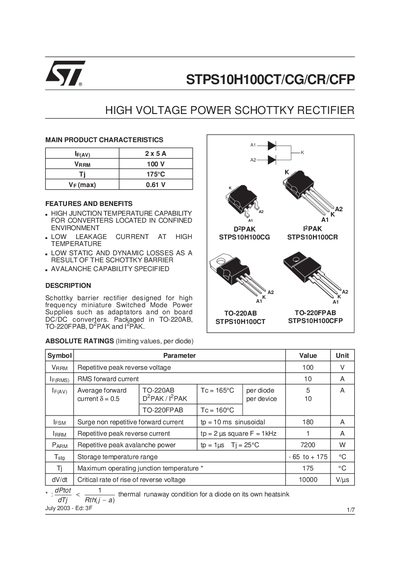

STPS10H100CT/CG/CR/CFP is a high voltage power Schottky rectifier with a maximum forward current of 2 x 5 A, a reverse peak voltage of 100 V, and a maximum operating temperature of 175°C. The diode features high junction temperature capability, low leakage current, low static and dynamic losses, and avalanche capability.
The STPS10H100CT/CG/CR/CFP series are high‑voltage power Schottky rectifiers designed for high‑frequency switched‑mode power supplies. Key characteristics include a repetitive peak reverse voltage of 100 V, an average forward current of 2 × 5 A, and a maximum forward voltage drop of 0.61 V. The devices feature high junction‑temperature capability (up to 175 °C) and low leakage current, making them suitable for confined environments.
Mechanical data are provided for D2PAK, TO‑220AB, TO‑220FPAB and PPAK packages, with detailed dimensions and thermal resistance values. Thermal resistance from junction to case ranges from 1.3 °C/W (TO‑220AB) to 4.5 °C/W (TO‑220FPAB). Ordering information, torque recommendations and compliance notes are also included.
| Repetitive peak reverse voltage (VrRM) | 100 V |
|---|---|
| Maximum forward voltage drop (Vr max) | 0.61 V |
| Maximum junction temperature (Tj) | 175 °C |
| Storage temperature range (Tsig) | -65 °C to +175 °C |
| Junction‑to‑case thermal resistance (D2PAK) | 2.2 °C/W |
The series is rated for a repetitive peak reverse voltage of 100 V.
The device can operate up to 175 °C junction temperature.
