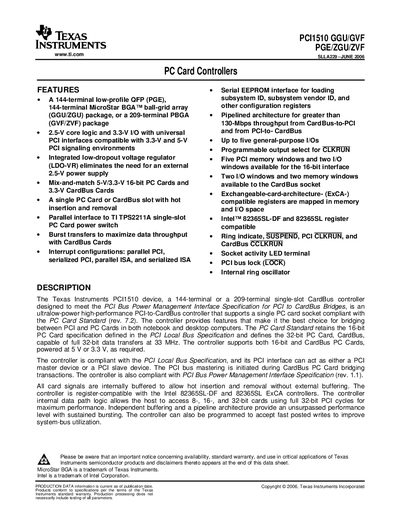

This document describes the features and characteristics of the PCI1510 GGU/GVF PGE/ZGU/ZVF PC Card Controllers, including support for multiple package forms, high-speed throughput, compatibility with various interfaces, and programmable output selection.
The PCI1510 is a single‑slot CardBus controller that bridges PCI and PC Card interfaces. It supports both 16‑bit and CardBus PC Cards, operates at 2.5 V core logic with 3.3 V I/O, and provides up to five general‑purpose I/Os, five PCI memory windows, and two I/O windows. The device features a pipelined architecture for up to 130 Mbps throughput, multiple interrupt signaling options, and an integrated low‑dropout voltage regulator.
Packaging options include a 144‑terminal low‑profile QFP (PGE), a 209‑terminal PBGA (GGU/ZGU), and a 144‑terminal BGA (GVF/ZVF). Mechanical drawings give dimensions in millimeters, and the datasheet includes important warranty and usage notices from Texas Instruments.
| Core logic voltage | 2.5 V |
|---|---|
| I/O voltage | 3.3 V |
| General‑purpose I/Os | Up to five |
| Maximum data throughput | 130 Mbps |
| PCI clock rate | Up to 33 MHz |
It supports both 16‑bit and CardBus PC Cards, powered at 5 V or 3.3 V.
The core logic operates at 2.5 V.
