LUW W5AM Golden DRAGON® Plus with Chip Level Conversion (CLC) is a white SMD LED with high efficiency light source and low space occupation. The product has a light output power of 85 lm and a color temperature of 6500K. This product is suitable for advertising lighting, general lighting, reading lighting, small bulb replacement, indoor and outdoor building lighting, display backlighting and other scenarios.
The LUW W5AM is a white SMD LED with a clear silicone lens and chip‑level conversion, designed for high luminous output in a compact package. It uses ThinGaN® technology and offers an optical efficiency of 77 lm/W, a typical luminous flux of 85 lm at 350 mA, and a wide 170° viewing angle.

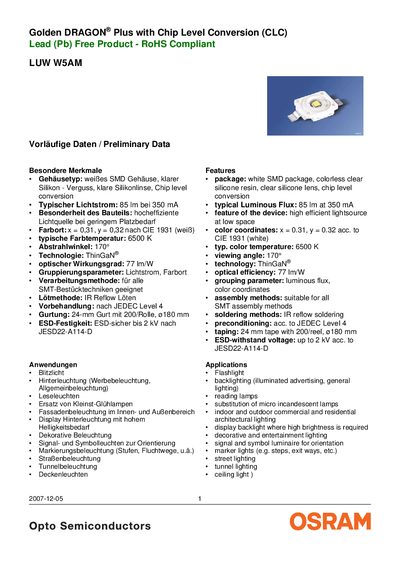

The datasheet provides detailed ordering information, maximum ratings, electrical characteristics, and recommended assembly methods such as IR reflow soldering. It also lists brightness and chromaticity coordinate groups, patent references, and packaging guidelines for reliable integration into lighting applications. This manual is written in German.
| Typical Luminous Flux | 85 lm at 350 mA |
|---|---|
| Color Coordinates (x, y) | x = 0.31, y = 0.32 |
| Viewing Angle | 170° |
| Technology | ThinGaN® |
| Optical Efficiency | 77 lm/W |
| Forward Voltage (typ.) | 3.2 V |
| Operating Temperature Range | -40 °C to +110 °C |
| Storage Temperature Range | -40 °C to +110 °C |
| Junction Temperature Max | 125 °C |
| Surge Current | 2000 mA |
| Power Consumption | 3.8 W |
The LUW W5AM delivers a typical luminous flux of 85 lm at a drive current of 350 mA.
IR reflow soldering is the recommended assembly method for this component.
The device can operate from –40 °C up to +110 °C.
The LED has chromaticity coordinates of x = 0.31 and y = 0.32 (CIE 1931).
