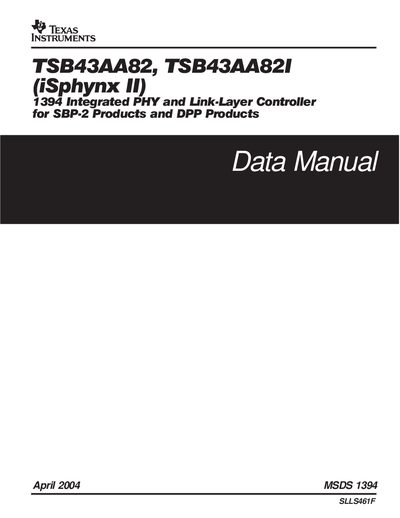

The TSB43AA82 is a 1394 Integrated PHY and Link‑Layer Controller designed for SBP‑2 and DPP products. The document describes its architecture, register map, timing, and operation modes, including synchronous, asynchronous, and SCSI modes.
The manual includes detailed register definitions, command and data FIFO structures, PHY configuration, electrical characteristics, and mechanical package drawings for both the PGE (S‑PQFP‑G144) and GGW (S‑PBGA‑N176) variants.
| Package type (PGE) | S‑PQFP‑G144 PLASTIC QUAD FLATPACK |
|---|---|
| Package type (GGW) | S‑PBGA‑N176 PLASTIC BALL GRID ARRAY |
The register map is detailed in the Configuration Register (CFR) section and the subsequent chapters covering FIFO and PHY registers.
