This manual introduces the hardware and software features of the dsPICDEM 1.1 development board and provides usage instructions, circuit connection diagrams and other information.

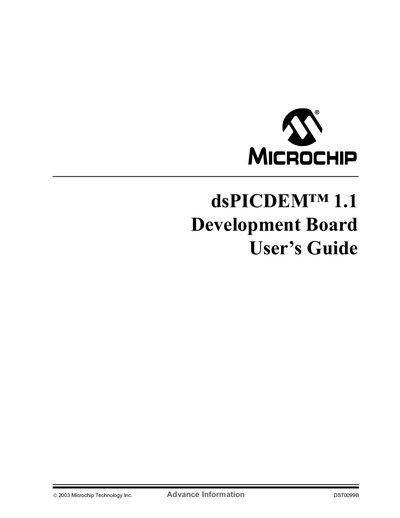

The Microchip dsPICDEM 1.1 Development Board User’s Guide provides an introduction to the board, its hardware overview, and step‑by‑step tutorial for getting the board up and running with the MPLAB IDE and ICD 2. It also describes the demonstration program pre‑programmed into the dsPIC30F device and explains how to use the on‑board LCD controller.
Additional sections include hardware schematics, LCD controller specifications, a full index, and worldwide sales and service contact information. The guide also points users to related Microchip documentation, warranty registration, and online support resources.
| LCD controller resolution | 122 x 32 pixels |
|---|---|
| Pre‑programmed MCU | dsPIC30F |
It describes how to use the dsPICDEM 1.1 Development Board, including setup, programming, and hardware details.
