Robin 1652 electrical tester is a hand-held electrical tester that has continuity, insulation, loop impedance, RCD tripping time, RCD tripping current level and RCD auto-testing.

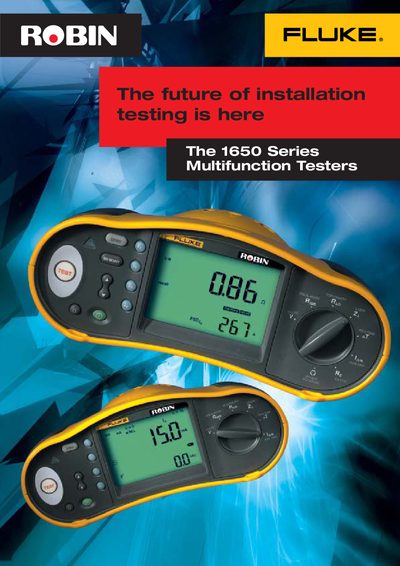

The Fluke 1650 Series testers verify the safety of electrical installations in domestic, commercial and industrial applications, meeting IEC 60364 and BS 7671 standards. They feature an ergonomic design, lightweight construction (less than 1.2 kg), a padded neck‑strap, and a slim probe with an integral test button for one‑handed measurements.
The manual covers all test functions—including voltage & frequency, insulation resistance, continuity, loop impedance, RCD testing, earth resistance, and phase sequence—plus specifications, accessories, battery information, and storage of up to 500 test results. Optional FlukeView® Forms software enables data export for professional reporting.
| Weight (with batteries) | 1.17 kg |
|---|---|
| Dimensions (L × W × H) | 10 × 25 × 12.5 cm |
| Operating temperature range | -10 °C to 40 °C |
| Battery type | 6 AA alkaline (compatible with NiCD/NiMH) |
| Maximum stored test results | 500 |
| Safety rating | EN 61010‑1, CAT II 500 V |
The tester weighs 1.17 kg with batteries installed.
The instrument can store up to 500 test results.
It uses six AA alkaline batteries, and can also operate with NiCD or NiMH rechargeable cells.
The device operates from –10 °C to 40 °C.
