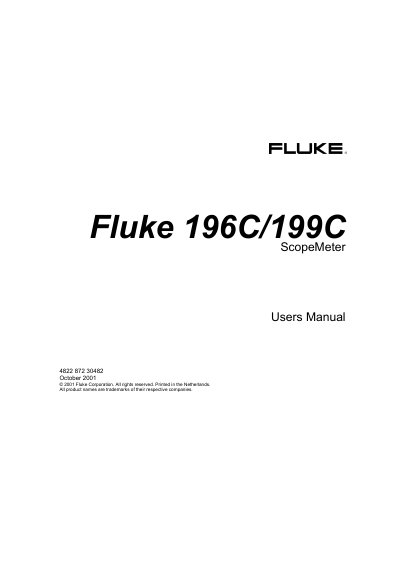

Fluke 196C/199C ScopeMeter Users Manual
This manual covers everything needed to set up and operate the Fluke 196C/199C ScopeMeter, including unpacking the test tool kit, safety precautions, and detailed usage of the oscilloscope, multimeter, and recorder functions. It also explains triggering options, memory handling, PC and printer connections, and offers tips for optimal performance.
Additional sections describe maintenance procedures, battery handling, calibration, and a full list of specifications such as bandwidth, record length, voltage ranges, and accuracy. Warranty terms and service center information are provided at the end of the document.
| Bandwidth (199C) | 200 MHz |
|---|---|
| Bandwidth (196C) | 150 MHz |
| Record Length per Input | 27,500 points |
| Maximum AC Voltage with 10:1 Probe | 1000 V |
| DC Accuracy (0‑60 Hz) | ±(1.5 % + 10 counts) |
Visit the Fluke website at www.fluke.com or call the listed phone numbers for the USA, Europe, or other regions.
The maximum voltage is 1000 V with a 10:1 probe.
