The Fluke 416D and 411D Laser Distance Meters are compact, hand-held professional-grade distance measuring tools that are fast, easy to use, and fit in your pocket. These meters use the most advanced distance measuring technology for accurate measurements.
The Fluke 416D and 411D are pocket‑sized laser distance meters designed for fast, one‑handed measurements indoors and in limited outdoor conditions. They feature a bright 635 nm laser, back‑lit three‑line LCD, and shortcut keys for area, volume, addition and subtraction.

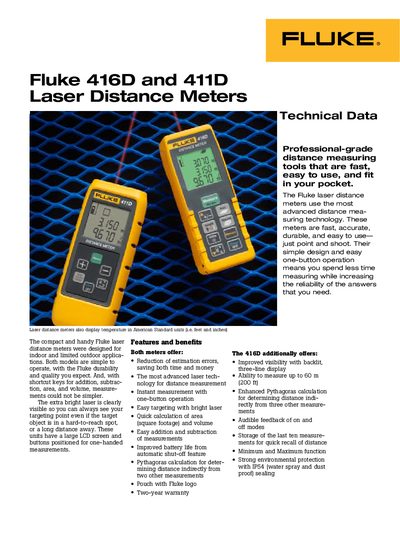

The manual includes technical data, feature highlights, and detailed specifications such as a measuring range up to 60 m (200 ft), accuracy of ±1.5 mm, IP40 protection, and up to 5,000 battery‑powered measurements. Safety and warranty information are also provided.
| Measuring Accuracy | ±1.5 mm (+ 0.059 in) |
|---|---|
| Units Displayed | 00.000 m, 000 ft 00 in 1/16, 000.00 ft |
| Laser Type | 635 nm, < 1 mW |
| Battery Life | up to 5,000 measurements |
| Dimensions | 135 mm × 46 mm × 31 mm |
| Ingress Protection | IP40 |
| Temperature Range | -25 °C to 70 °C |
| Storage Humidity | Maximum 85 % for 24 h |
| Operating Altitude | up to 3500 m |
The Fluke 416D can measure up to 60 m (200 ft).
The device stores the last ten measurements for quick recall.
It uses two AAA batteries.
Both models have an IP40 rating for water‑spray and dust protection.
