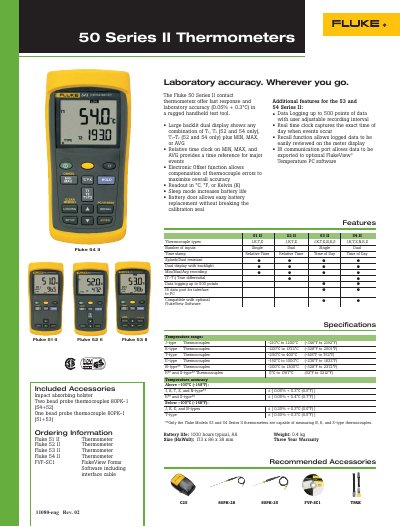

Fluke 50 Series II Thermometers provide laboratory accuracy in a rugged, compact package. With multiple input configurations, these easy-to-use digital thermometers can measure a variety of temperature types. Data logging capabilities and an optional IR communication port provide added flexibility for data collection and transfer.
The Fluke 50 Series II contact thermometer is a rugged handheld tool that offers laboratory‑grade accuracy (0.05% + 0.3 °C) and fast response for a variety of thermocouple types. This manual outlines the device’s functions, accessories, and how to operate the meter in industrial and laboratory environments.
Key features include data logging of up to 500 points, a real‑time clock with time‑stamp capability, an IR communication port for exporting data to FlukeView software, dual backlit displays, and splash/dust‑resistant construction. The manual also lists recommended accessories such as impact‑absorbing holsters and various probe thermocouples.
| Battery life | 1000 hours typical |
|---|---|
| Size (HxWxD) | 1.73 x 86 x 38 mm |
| Weight | 0.4 kg |
| Data logging capacity | up to 500 points |
| J‑type temperature range | -210 °C to 1200 °C |
| Temperature accuracy (above –100 °C, J,K,T,E,N) | ±0.05% + 0.3 °C |
It can log up to 500 points of data.
The typical battery life is 1000 hours.
They support J, K, T, E, N, R, and S thermocouples.
