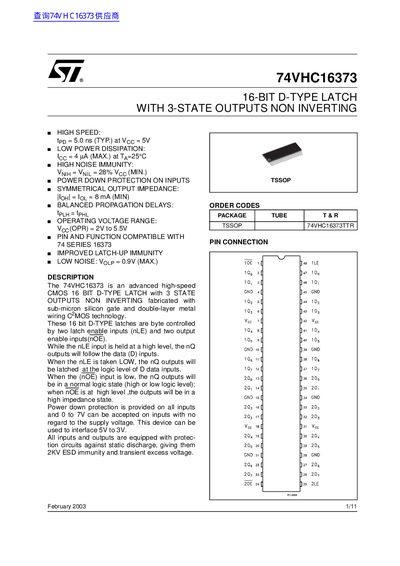

The 74VHC16373 is an advanced high-speed CMOS 16 BIT D-TYPE LATCH with 3 STATE OUTPUTS NON INVERTING fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology
The 74VHC16373 is a high‑speed CMOS 16‑bit D‑type latch featuring three‑state non‑inverting outputs, low power dissipation, and robust ESD protection. It operates from a supply voltage of –0.5 V to +7.0 V and includes latch‑enable and output‑enable control inputs.
The document provides detailed pin descriptions, electrical characteristics, timing parameters, mechanical dimensions for tape‑and‑reel packaging, and recommended operating conditions. It is intended for designers integrating the device into mixed‑voltage logic circuits.
| Supply Voltage Range (VCC) | -0.5 to +7.0 V |
|---|---|
| Input High Level Voltage (VIH) | 2.0 V (typ) |
| Output Low Voltage (VOL) | 0.0 V (typ) |
| Propagation Delay (tPHL, tPLH) | 3.3 ns (typ) |
| Input Capacitance (CIN) | 10 pF (typ) |
| Output Capacitance (COUT) | 4 pF (typ) |
| Storage Temperature Range | -65 °C to +150 °C |
| Operating Temperature Range | -55 °C to +125 °C |
It operates from –0.5 V to +7.0 V.
Typical propagation delay (tPHL/tPLH) is about 3.3 ns.
