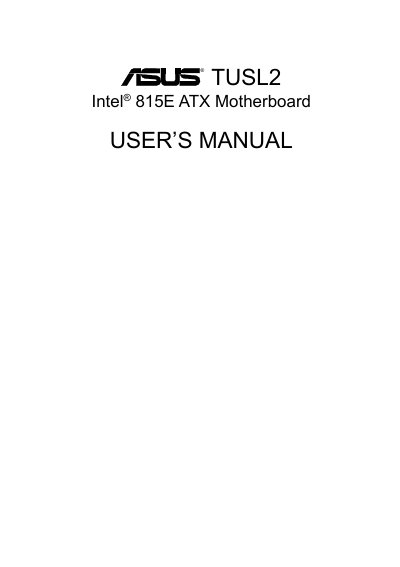

ASUS TUSL2 Intel 815E ATX Motherboard

This document is the user manual for ASUS TUSL2 Intel® 815E ATX Motherboard, describing the features and characteristics of the product.

Brand: ASUS
Category: Motherboard
Document type: User Manual
Language: English
Pages: 114
File format: PDF
File size: 3.4 MB
Published: 04 May, 2012
Updated: 29 September, 2023
Model: TUSL2
MD5 checksum: 85A5BD3BCFCA0423AFEE274E8C18B6A2
PDF: ASUS TUSL2 Intel 815E ATX Motherboard PDF

About this manual

The ASUS TUSL2 motherboard manual provides step‑by‑step instructions for installing the board, configuring the BIOS, and using the bundled software utilities. It includes safety notices, FCC compliance information, and detailed hardware specifications.

The guide is organized into sections on features, hardware setup, BIOS setup, software installation, and reference material, with an appendix for optional items and additional references.

What's inside

Introduction
Features
Hardware Setup
BIOS Setup
Software Setup
Software Reference
Appendix
FCC & DOC Compliance

Specifications

North Bridge Chipset	Intel 815E B Stepping
South Bridge Chipset	Intel I/O Controller Hub 2 (ICH2)
Integrated Graphics	24‑bit 230 MHz RAMDAC graphics controller
Wake‑Up Features	Wake‑On‑LAN, Wake‑On‑Ring, Keyboard Wake‑Up, BIOS Wake‑Up

Frequently asked questions

Does the motherboard support Wake‑On‑LAN?

Yes, it supports Wake‑On‑LAN, Wake‑On‑Ring, Keyboard Wake‑Up, and BIOS Wake‑Up.
