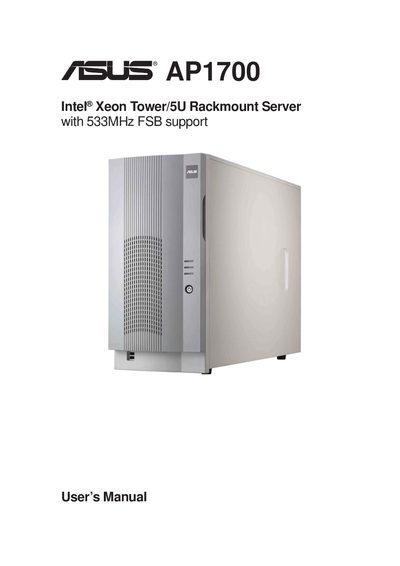

This user manual describes the general features of the ASUS AP1700 server, including front panel, rear panel and internal specifications.
The ASUS AP1700 is a 5U tower or rackmount server built around the ASUS PR‑DLS533 motherboard and supports dual Intel Xeon processors. It includes redundant 500 W power supplies, multiple PCI‑X expansion slots, and hot‑swap SCSI drive bays for high‑availability storage.
The manual covers the system package contents, front and rear panel features, internal components, LED indicators, and basic configuration steps, helping administrators install, power on, and maintain the server safely.
| Form factor | Pedestal or rackmount 5U |
|---|---|
| Processor support | Two Intel Xeon processors up to 2.8 GHz |
| Memory | Six 184‑pin DDR DIMM sockets, 128 MB‑12 GB ECC DDR |
| Power supply | 500 W redundant |
| Expansion slots | 5 × 64‑bit 3 V PCI‑X, 1 × 32‑bit/83 MHz PCI |
It uses a 500 W redundant power supply.
The server includes six hot‑swap SCSI hard‑drive trays.
It includes an Intel 82544GC and an Intel 82540EM Gigabit Ethernet controller.
