ASUS P5K-E/WIFI-AP motherboard supports Intel 45nm multi-core CPU, supports DDR2 1066/800/667MHz memory, supports dual channel memory architecture, supports PCI-E x16, PCI-E x1, PCI slot, equipped with 6 SATA interfaces and 2 SATA on the Go interfaces, built-in 1394 interface and Gigabit Ethernet, supports WiFi-AP function

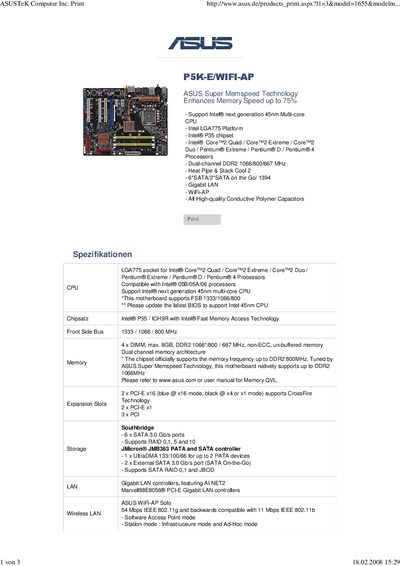

This manual covers the ASUS P5K-E/WIFI-AP motherboard built on the Intel® P35 chipset for LGA775 processors. It details supported CPUs, memory configurations, expansion slots, storage options, networking, and wireless capabilities.
The document also includes BIOS features, connector layouts, form‑factor dimensions, and operating system compatibility, helping users install, configure, and maintain the board safely.
| CPU Socket | LGA775 |
|---|---|
| Supported CPUs | Intel Core2 Quad, Core2 Extreme, Core2 Duo, Pentium Extreme, Pentium D, Pentium 4 |
| Memory Slots | 4 DIMM, max 8 GB, DDR2 1066/800/667 MHz |
| Front Side Bus | 1333 / 1066 / 800 MHz |
| SATA Ports | 6 × SATA3.0 Gb/s |
| LAN | Gigabit Ethernet (Marvell88E8056) |
| Wireless LAN | WiFi‑AP Solo 54 Mbps IEEE 802.11g (backward compatible with 11 Mbps 802.11b) |
| USB Ports | 10 × USB 2.0 (4 mid‑board, 6 back panel) |
| Form Factor | ATX, 12" × 9.6" (30.5 cm × 24.4 cm) |
It supports Intel LGA775 processors including Core 2 Quad, Core 2 Extreme, Core 2 Duo, Pentium Extreme, Pentium D, and Pentium 4.
The WiFi‑AP Solo provides 54 Mbps IEEE 802.11g and is backward compatible with 11 Mbps IEEE 802.11b.
The motherboard offers ten USB 2.0 ports – four on the mid‑board and six on the back panel.
It follows the ATX form factor, measuring 12 inches by 9.6 inches (30.5 cm × 24.4 cm).
