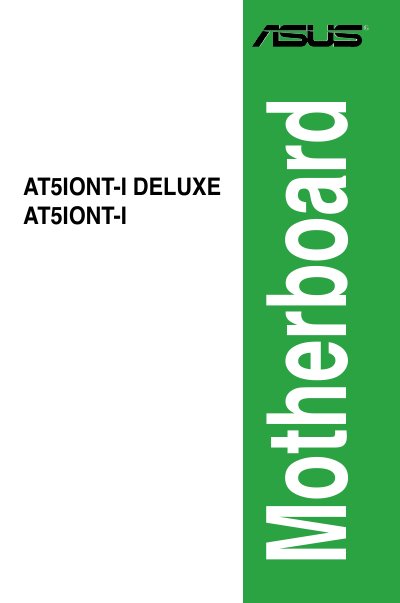

This is a manual about ASUS AT5IONT-I DELUXE AT5IONT-I ii E5277 motherboard
This guide covers the AT5IONT-I DELUXE motherboard features, including its integrated Dual‑Core Intel Atom D525 processor, NVIDIA ION graphics, and Intel NM10 chipset. It explains how to install the board, configure BIOS settings, and connect peripherals.
Safety instructions, FCC compliance notes, and warranty information are also included, along with detailed specifications for memory, storage, USB, audio, and networking interfaces.
| Processor | Integrated Dual‑Core Intel Atom D525 |
|---|---|
| Chipset | Intel NM10 |
| Memory | 2× SO‑DIMM sockets, up to 4 GB DDR3 800 MHz (max 3 GB usable) |
| Storage | 2× Serial ATA 3 Gb/s ports (AHCI mode) |
| Audio | ALC887 6+2‑channel HD Audio CODEC, DTS Surround Sensation Ultra‑PC |
| LAN | PCIe Gigabit LAN controller |
| USB Ports | 2× USB 3.0 (blue) rear, 4× USB 2.0 (2 mid‑board, 2 rear) |
The warranty is void if the product is repaired, modified, or altered without ASUS written permission, or if the serial number is defaced or missing.
The board includes two USB 3.0 ports on the rear panel.
