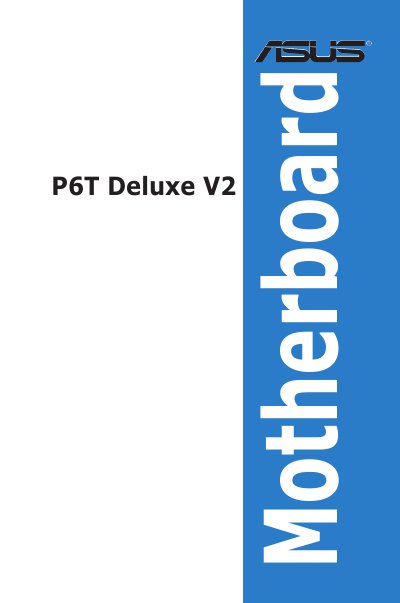

This document is a manual for the P6T Deluxe V2 ii E4398 motherboard by ASUSTeK COMPUTER INC. It provides descriptions of the product and software, as well as important information for users. The document also mentions guidelines for repair, modification, and warranty of the product.
This user manual covers everything needed to install and configure the ASUS P6T Deluxe V2 motherboard, including hardware layout, CPU and memory installation, expansion slots, and connector descriptions. It also explains BIOS setup, software support, and troubleshooting steps.
Additional sections describe multi‑GPU technologies such as NVIDIA SLI and ATI CrossFireX, RAID configurations, and safety and regulatory information. The specifications summary provides detailed technical data for the board’s components and interfaces.
| CPU socket | LGA1366 |
|---|---|
| Chipset | Intel® X58 / ICH10R |
| Memory slots | 6 DIMM, up to 24 GB DDR3 |
| Memory architecture | Triple channel |
| SATA ports | 6 x SATA 3.0 Gb/s |
| LAN controllers | Dual Gigabit LAN (2 x Marvell 88E8056) |
| USB ports | 14 x USB 2.0 |
| Audio codec | ADI AD2000B 8‑channel HD Audio |
| Form factor | ATX (30.5 cm × 24.4 cm) |
It uses an LGA1366 socket for Intel Core i7 processors.
The board includes six SATA 3.0 Gb/s ports.
Both NVIDIA SLI (2‑Way or Quad‑GPU) and ATI CrossFireX are supported.
The motherboard provides fourteen USB 2.0 ports.
