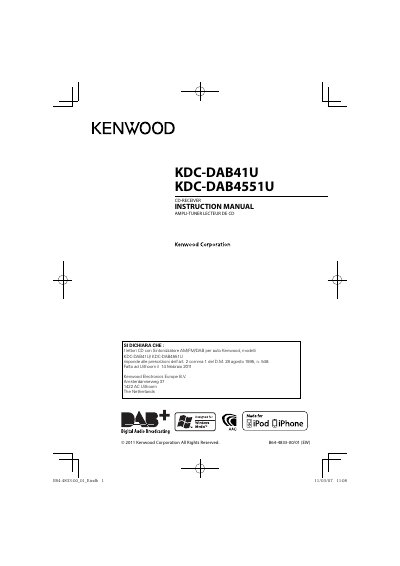

This manual covers safety precautions, installation, and basic operation of the Kenwood KDC-DAB41U / KDC-DAB4551U car CD receiver. It explains how to attach the faceplate, reset the unit, use the remote controller, and navigate the menu for radio, DAB, CD, USB, and iPod sources.
Additional sections detail Bluetooth pairing, clock adjustment, DAB service search, troubleshooting, and a full list of technical specifications for the tuner, CD player, audio output, and power requirements.
| L‑Band frequency range | 1452.960 MHz – 1490.624 MHz |
|---|---|
| Maximum output power | 50 W × 4 |
| Spindle speed | 500 rpm – 200 rpm (CLV) |
| Total harmonic distortion (1 kHz) | 0.01 % |
| Signal‑to‑Noise ratio (1 kHz) | 105 dB |
| Weight | 1.2 kg |
Press the reset button; the unit returns to factory settings.
Press the volume knob, select YES, then press the volume knob again; the display shows [DEMO OFF].
Enter FUNCTION mode with the volume knob, select CLOCK, then CLOCK ADJUST; the clock hour flashes on the display for adjustment.
