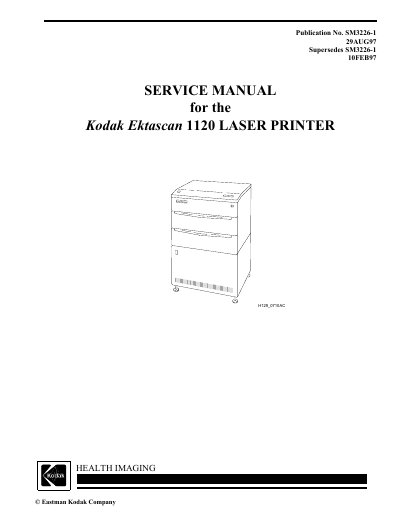

This document is a service manual for the Kodak Ektascan 1120 laser printer, providing information on usage precautions and safety warnings. It emphasizes the need for qualified personnel to perform maintenance and prevent damage from electrostatic discharge.
This service manual covers the safety requirements and special tools needed to service the Kodak Ektascan 1120 laser printer, including warnings about infrared laser exposure and electrostatic discharge protection. Detailed sections describe the removal of covers, image and optical units, and the various circuit boards such as the driver, memory, and laser diode boards.
The manual also provides step‑by‑step adjustment procedures for film guides, roller motors, and electrical calibrations, as well as a preventive maintenance checklist that includes cleaning instructions, filter replacement, and error log review to keep the printer operating reliably.
| Receive Door dimension | 56.8 to 57.2 mm |
|---|---|
| Supply Door dimension | 57.8 to 58.2 mm |
The infrared laser beam is not visible and can cause hazardous radiation exposure.
Use Spectro‑Grade Acetone (Part No. 1C8068) and lens paper (TL‑2278).
