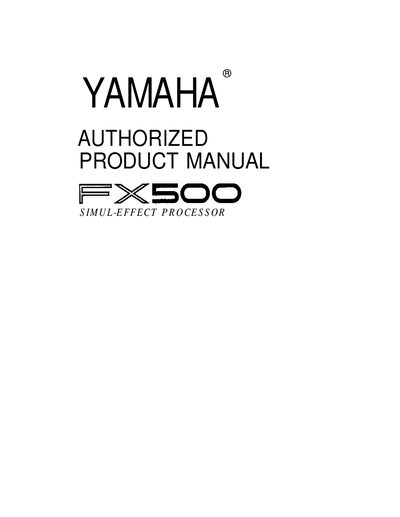

Yamaha FX500 User Manual

About this manual

The FX500 Simul‑Effect Processor is a high‑performance digital effects unit that offers up to six independent effects such as compressor, distortion, equalizer, modulation, and reverb/delay. It includes 60 preset programs and 30 RAM locations for user‑created effects, plus extensive MIDI control for real‑time parameter changes.

The manual covers safety precautions, power requirements, connection diagrams, control functions, memory management, MIDI setup, and detailed specifications. It also provides troubleshooting advice and service information for qualified Yamaha technicians.

What's inside

• Precautions
• The FX500: What It Is and What It Does
• Connections: Basic System Setup
• The Controls: A Quick Operation Guide
• The MEMORY Mode: Selecting Effect Programs
• The Parameter Mode: Editing the Effect Programs
• The Utility Mode
• Specifications

Specifications

Frequently asked questions

How can I control effect parameters with MIDI?

Assign two MIDI controllers to any two effect parameters; the FX500 accepts MIDI PROGRAM CHANGE and CONTROL CHANGE messages for real‑time control.

What should I do if the backup battery warning appears on the display?

Have the backup battery replaced by qualified Yamaha service personnel; do not attempt to replace it yourself.
