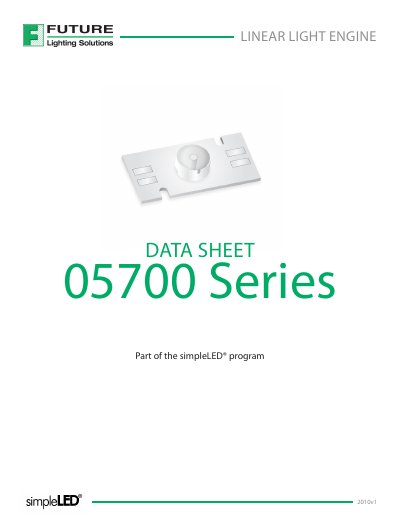

This document is a data sheet for the linear light engine. The product features high reliability, rugged construction, wide operational temperature range, multiple configurable options, flexible optic options, wide range drive current, and multiple white CCT options. It is suitable for under cabinet lighting, cove lighting, accent lighting, display case lighting, and display lighting applications.
The 2010v1 linear light engine is a high‑power LED module designed for cabinet, accent and display lighting. It features a rugged construction, wide operating temperature range, multiple configurable LED, optic and connector options, and is covered by a three‑year manufacturer warranty.
Thermal management is critical; the module must be mounted on a flat heat sink using M3 screws and a thermal interface material. The recommended thermal resistance is 21 K/W for typical operating conditions, and the device complies with CE and UL standards. This manual is written in Chinese.
| Size | 25 x 50 mm |
|---|---|
| Source type | Luxeon rebel LED |
| Connector type | Tyco C t (2-292173-2) |
| Thermal resistance (junction‑to‑PCB) | 21 K/W |
| Forward Voltage (350 mA, 25 °C) | 2.5 V – 4.0 V |
| Power Consumption (350 mA) | 0.9 W – 1.4 W |
| Storage Temperature | -40 °C to +70 °C |
| PCB Temperature Range | -20 °C to +80 °C |
A thermal resistance of 21 K/W is required to keep the junction temperature within limits.
It is covered by a three‑year manufacturer warranty.
The module is CE certified and UL recognized.
It must be mounted on a flat heat sink using M3 screws and a thermal conductive interface material.
