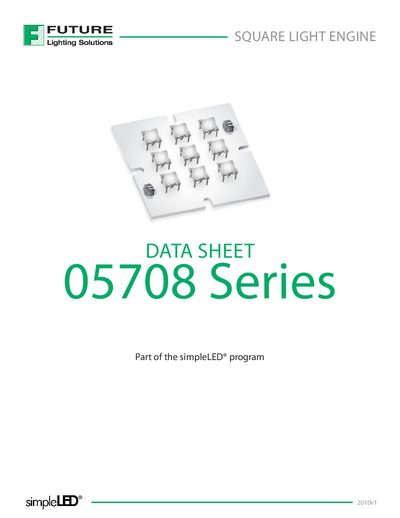

This document is a datasheet for Future Lighting Solutions' 05708 series light engine.
The 05708 series light engine is a modular LED module built around nine high‑power LUXEON Rebel LEDs. It offers flexible options for optics, connectors, and drive current, making it suitable for a wide range of lighting applications such as under‑cabinet, cove, accent, display, and street lighting.
The document provides mechanical, electrical, and environmental specifications, thermal management guidelines, interconnection options, and part‑numbering details. It also includes ordering information and contact details for Future Lighting Solutions.
| Size | 50x50 mm |
|---|---|
| Source Type | LUXEON Rebel |
| Connector | Tyco mini CT (2106091-1) |
| Thermal Resistance | Rth = 21 K/W |
| Forward Voltage @350 mA, 25 °C | 22.9 V / 27.0 V / 35.9 V |
| Power Consumption @350 mA | 8.0 W / 9.5 W / 12.6 W |
| Storage Temperature | -40 °C to +70 °C |
| PCB Temperature Range | -20 °C to +80 °C |
A 3‑year manufacturer warranty (Rena) is provided.
The light engine uses LUXEON Rebel LEDs.
It uses a Tyco mini CT connector (part number 2106091‑1).
